Plot phase portrait for moment closure equations for Verhulst logistic model, assuming lognormal distribution.

This Maple work sheet uses Maple8, and the new package LinearAlgebra. Date 030402.

> restart;
with(DEtools,DEplot);
with(plots,display);
with(LinearAlgebra,Eigenvectors);
with(VectorCalculus,Jacobian);
XP:=Vector(2);

In the original Verhulst model, take alpha1=alpha2=1, R0=4, N=100. Then a1=3/5, f1=5/3, f2=3/5. Take r/K=1 (by rescaling time). Put kappa1=X[1], kappa2=X[2].

The equations are given by the procedure G:

>    G:=proc(N,t,X,XP)
   XP[1]:=(60-X[1])*X[1]-X[2];
   XP[2]:=(100-0.6*X[1])*X[1] + 119.4*X[2] - 4*X[1]*X[2] - 6*X[2]^2/X[1]      - 2*X[2]^3/X[1]^3;
   end;

Run G to determine XP:

> G(1,t,X,XP):

We determine the isocline where the first derivative is equal to zero:

> isocline1:=solve(XP[1],X[2]);

Determine the critical point as the intersection of the two isoclines:

> solve(expand(subs(X[2]=isocline1,XP[2])),X[1]);

There is only one critical point. Call it P1.

> P1[1]:=%;

> P1[2]:=subs(X[1]=P1[1],isocline1);

Now determine the Jacobian of the right-hand sides of the given system of equations:

> J:=Jacobian(XP,[X[1],X[2]]);

Determine the jacobian at the critical point:

> J1:=subs(X[1]=P1[1],X[2]=P1[2],J);

The eigenvalues and eigenvectors of this matrix:

> eg1:=Eigenvectors(J1,output=list);

Notice that P1 is a stable node. Furthermore, CHECK this!

eg1[1]: slow manifold, eg1[2]: fast manifold of stable node P1.

A Maple procedure for determining initial values on each manifold near each critical point...

Think of it as transforming eg-to-init (eg2init):

> eg2init:=proc(P,eg,d)
local u,lu,v,k;
u:=eg[3]; # This is an eigenvector.
lu:=sqrt(u[1]^2+u[2]^2); # This is the length of the eigenvector u.
v:=d*u/lu; # This is a vector of length d in the direction of u.
[seq([x(0)=P[1]+(-1)^k*v[1],y(0)=P[2]+(-1)^k*v[2]],k=1..2)];
#These are two initial values near P in the direction of the eigenvector.
end proc;

> init1fast:=eg2init(P1,eg1[2],5);

> plot1fast:=DEplot(G,[x(t),y(t)],t=-0.05..0,number=2,init1fast,x=-10..100,y=-100..1000,arrows=none,linecolor=red,stepsize=0.005):
plot1fast;

Plot one orbit on the slow manifold:

> plot1slow:=DEplot(G,[x(t),y(t)],t=0..0.05,number=2,[[x(0)=500,y(0)=20]],x=-10..100,y=-100..1000,arrows=none,linecolor=red,stepsize=0.001):
plot1slow;

NOTE: The arrows on the final phase portrait become less pronounced if the commend "color=red" below is replaced by "color=yellow".

> plotarrows:=DEplot(G,[x(t),y(t)],t=0..0.1,number=2,{[x(0)=60,y(0)=32]},x=-10..100,y=-100..1000,stepsize=0.01,color=red,linecolor=red):
plotarrows;

Plot four additional orbits:

> init1:=[x(0)=10,y(0)=0]:
plot1:=DEplot(G,[x(t),y(t)],t=0..0.1,number=2,[init1],x=-10..100,y=-100..1000,arrows=none,linecolor=red,stepsize=0.01):
plot1;

> init2:=[x(0)=10,y(0)=1000]:
plot2:=DEplot(G,[x(t),y(t)],t=0..0.1,number=2,[init2],x=-10..100,y=-100..1000,arrows=none,linecolor=red,stepsize=0.001):
plot2;

> init3:=[x(0)=40,y(0)=1000]:
plot3:=DEplot(G,[x(t),y(t)],t=0..0.1,number=2,[init3],x=-10..100,y=-100..1000,arrows=none,linecolor=red,stepsize=0.001):
plot3;

> init4:=[x(0)=100,y(0)=1000]:
plot4:=DEplot(G,[x(t),y(t)],t=0..0.05,number=2,[init4],x=-10..100,y=-100..1000,arrows=none,linecolor=red,stepsize=0.001):
plot4;

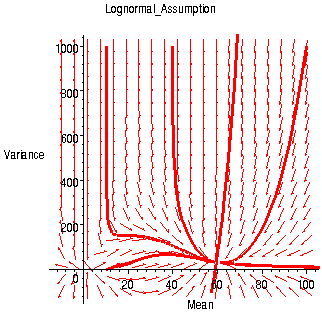

> display({plot1fast,plot1slow,plotarrows,plot1,plot2,plot3,plot4},title=Lognormal_Assumption,labels=[Mean,Variance]);

>
